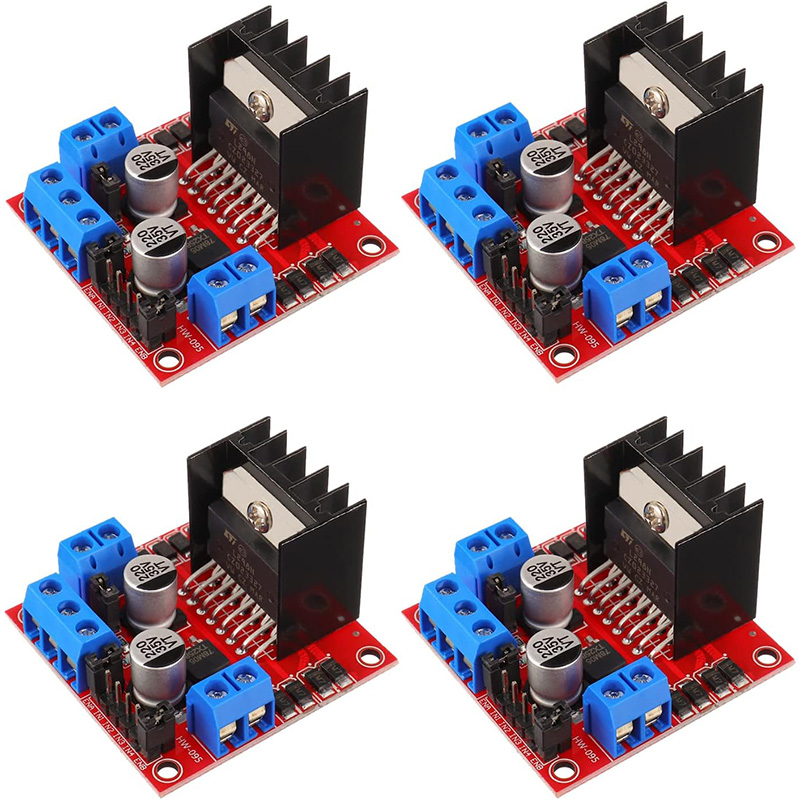

L298N Dual H-Bridge DC Motor Driver Controller Module
L298N dual H-bridge driver module uses ST original L298N chip. It supports 5~35V driving voltage to control two DC motors forward/reverse separately. Built-in optocoupler isolation, undervoltage and ESD protection, perfect for Arduino smart car and robot projects.
Description
Product Parameters

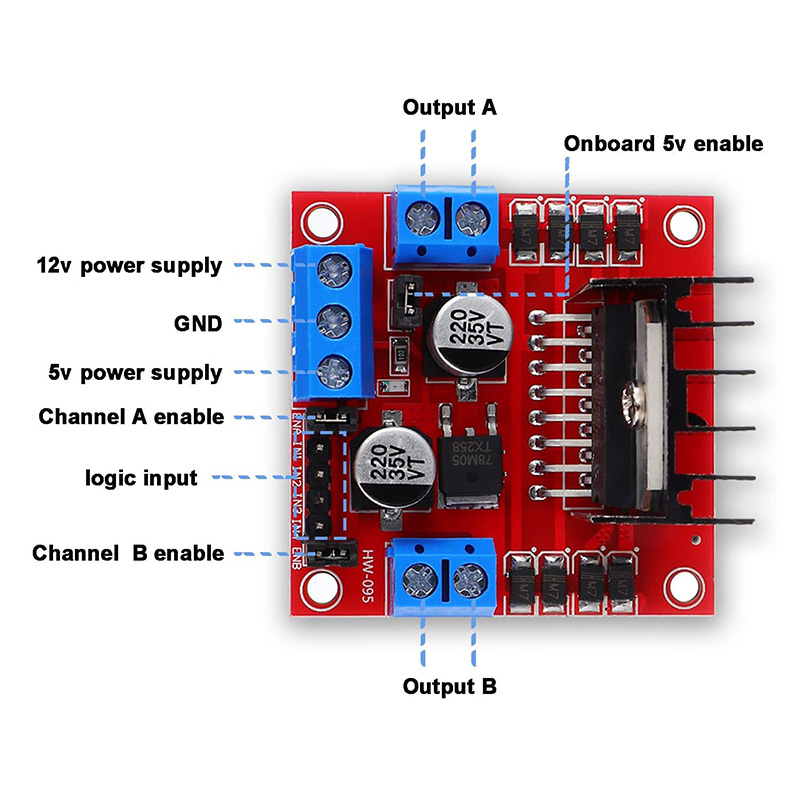

- Core Chip: ST L298N dual H-bridge driver IC
- Logic Input: DC 5V, working current 0~36mA
- Motor Driving Voltage: 5V~35V, single channel max output 2A, total power ≤25W
- Working Temp: -20℃~+135℃
- Board Size: 55×60×30mm, Net Weight:33g
Product Advantages
- Dual independent H-bridge circuit drives two DC motors simultaneously with forward, reverse and brake control;
- Optocoupler isolation on control signal effectively cuts off power interference, directly driven by MCU IO pins;
- Equipped with undervoltage protection and high-power TVS anti-static circuit to avoid burnout from surge current and static damage;
- Industrial-level circuit layout improves EMC stability for long-hour continuous operation.
Application Scenarios

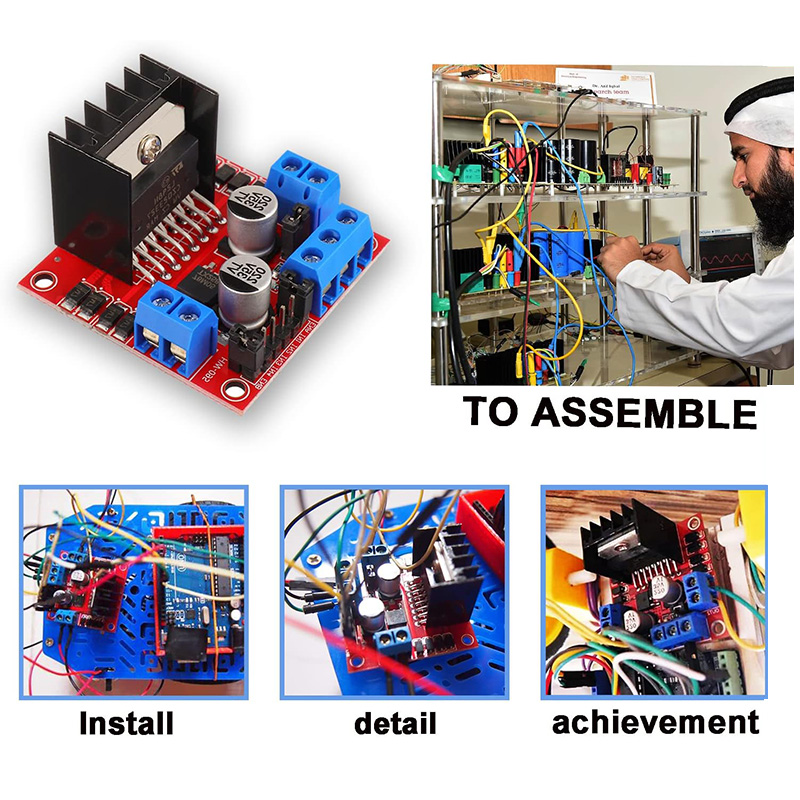

Mainly used for intelligent tracking car, robot chassis, DIY mechanical model and student electronic experimental projects.
