Orange Pi 5 RK3588S 8K AI Single Board Computer | Macchikoo
Orange Pi5 adopts RK3588S 8nm octa-core SoC with Mali-G610 GPU and 6TOPS NPU, optional 4/8/16GB LPDDR4X. It supports HDMI2.1 8K@60Hz, M.2 NVMe/WiFi6 expansion and multiple OS, ideal for Mini PC, AI development and
Description

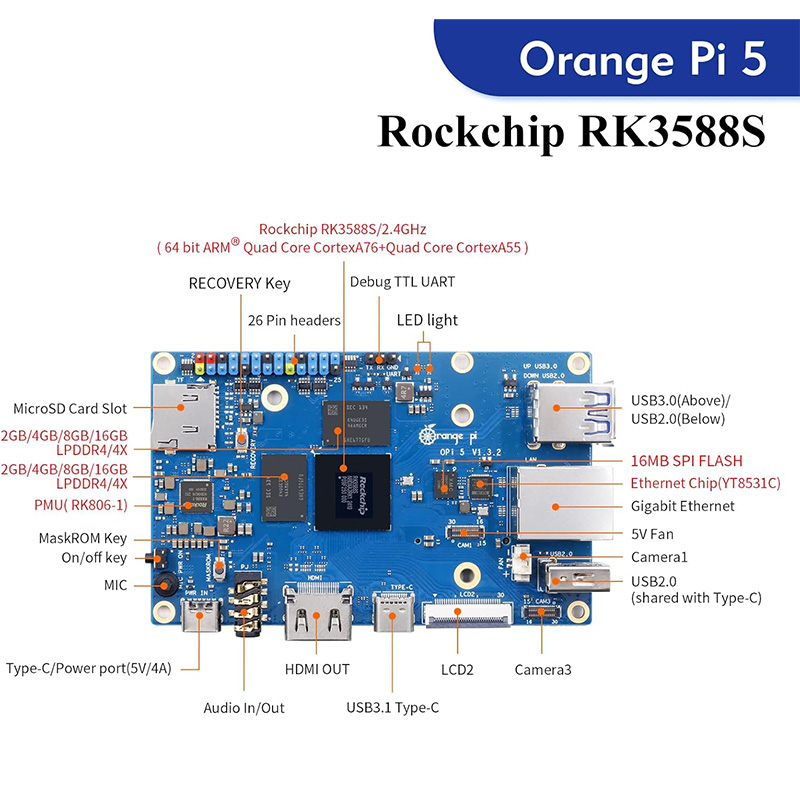

Core Specifications
- SoC: Rockchip RK3588S (8nm), 4×Cortex-A76@2.4GHz + 4×Cortex-A55@1.8GHz
- GPU: Mali-G610, supports OpenGL ES / OpenCL / Vulkan multi-spec
- NPU: 6TOPS AI accelerator, INT4/INT8/INT16 mixed computing
- RAM: Optional 4GB/8GB/16GB LPDDR4X
- Display: HDMI2.1 up to 8K@60Hz, DP1.4 over Type-C, dual MIPI DSI up to 4K@60Hz
- Camera: Dual 4Lane MIPI CSI for multi-camera access
- Network: 10/100/1000Mbps Gigabit Ethernet

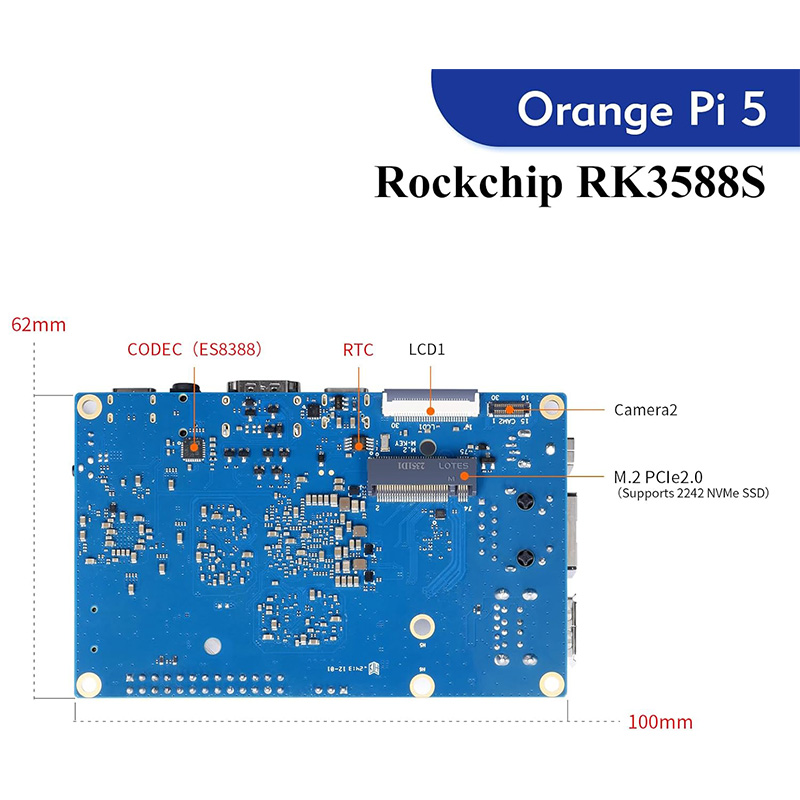

- Expansion: M.2 M-KEY PCIe2.0 for NVMe SSD & WiFi6+BT5.0 module
- Ports: USB3.0 + dual USB2.0, 3.5mm audio jack + onboard MIC
- System: Orange Pi OS, Ubuntu, Debian, Android12 etc.
- Buttons: Power / Recovery / MaskROM keys with dual status LED
Product Features
- New 8nm RK3588S platform with powerful NPU enables local AI inference, 8K video decode and multi-screen output.
- M.2 PCIe slot supports high-speed NVMe SSD and WiFi6+BT5.0 to upgrade storage and wireless performance easily.
- Rich video & camera interfaces meet multi-display and machine vision development demands.
- Multiple official open-source OS pre-support simplifies development deployment.
Application
Perfect to build Mini PC, smart robot, game console, workstation, media center, AR/VR device, edge AI equipment, smart home and intelligent security system.
