CM3588 RK3588 8K AI NAS SBC Development Board | Macchikoo

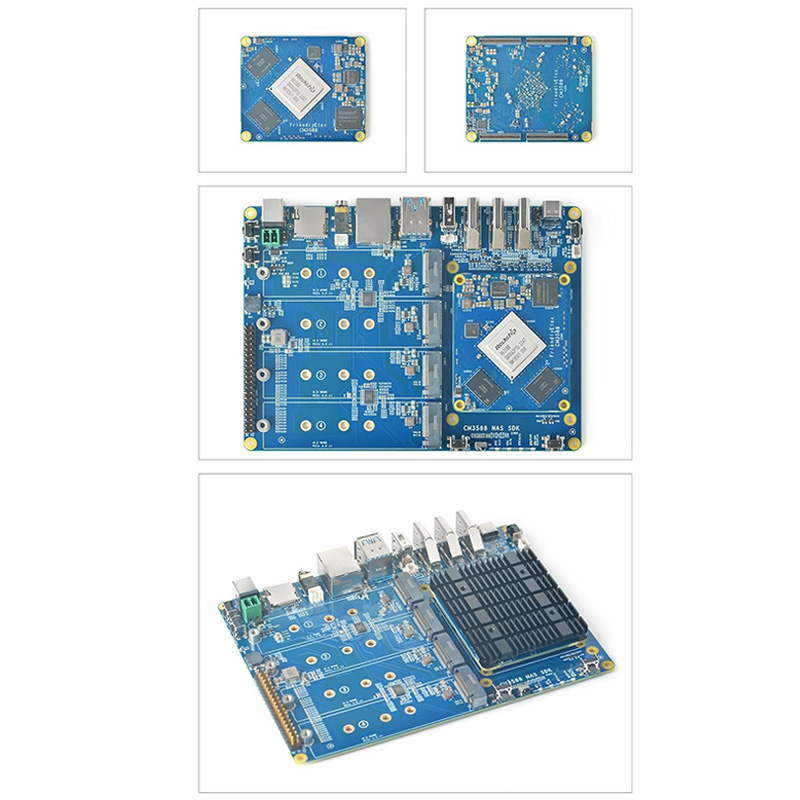

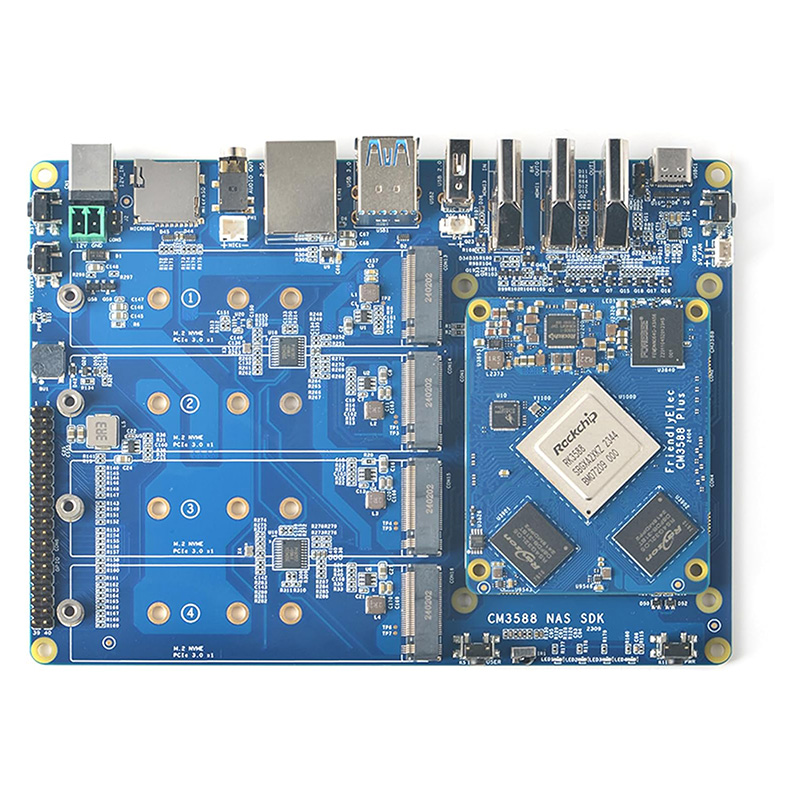

CM3588 is RK3588-based high-performance core board equipped with 6TOPS NPU and full 8K video codec. Configurable LPDDR4x/LPDDR5 + eMMC, rich expansion including NVMe, dual HDMI, HDMI-IN, USB3.0 and 2.5G LAN, compatible with OMV/Ubuntu/Debian for NAS, AI and machine vision development.
Description
Core Hardware Spec
Powered by Rockchip RK3588 octa-core SoC: 4×Cortex-A76 up to 2.4GHz + 4×Cortex-A55 up to 1.8GHz, Mali-G610 MP4 GPU and built-in 6TOPS NPU supporting INT4/INT8/INT16/FP16 arithmetic.
RAM optional: 4/8/16GB LPDDR4x@2133MHz or 32GB LPDDR5@2400MHz; eMMC storage optional 0/64/256GB working at HS400. Equipped with four 100Pin connectors for full IO expansion plus MicroSD (SDR104).
Powerful 8K VPU Codec
Onboard dedicated VPU enables multi-format video decode & encode:
Decode: 8K@60fps H.265/VP9, 8K@30fps H.264, 4K@60fps AV1;
Encode: 8K@30fps H.264/H.265 and 4K@60fps H.265 recording.

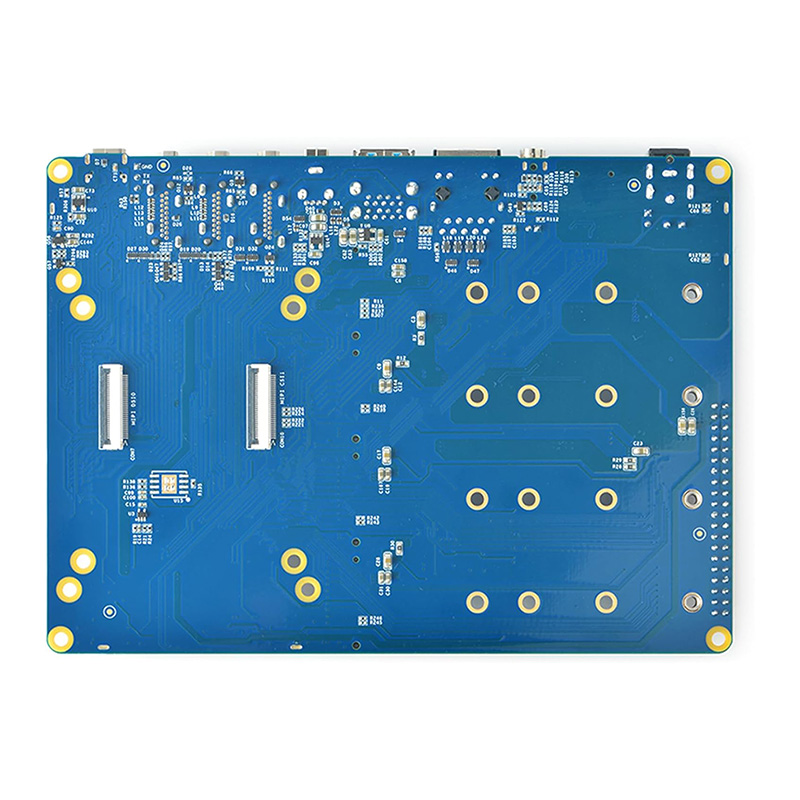

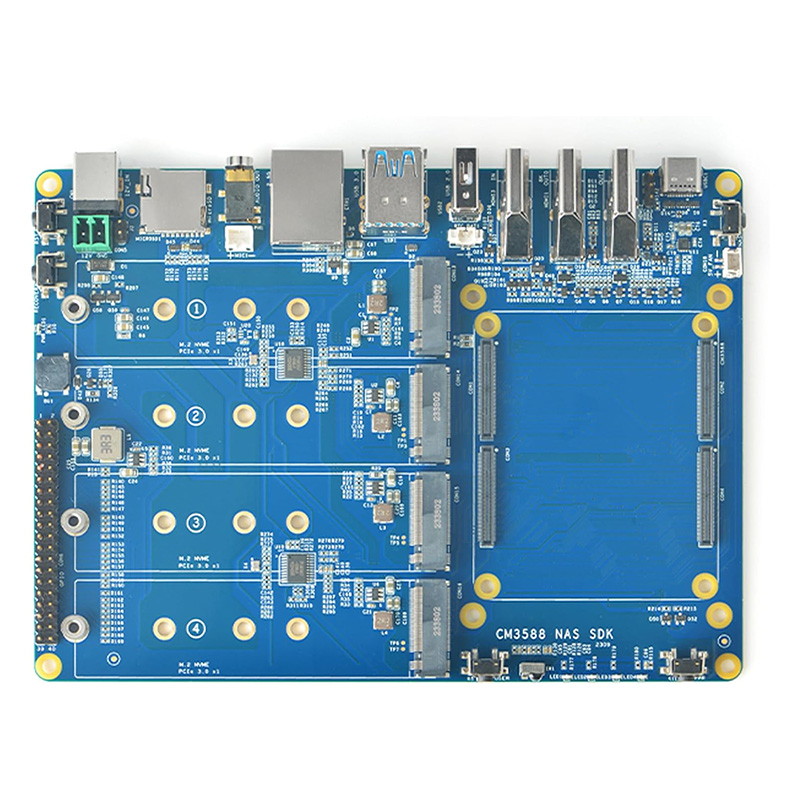

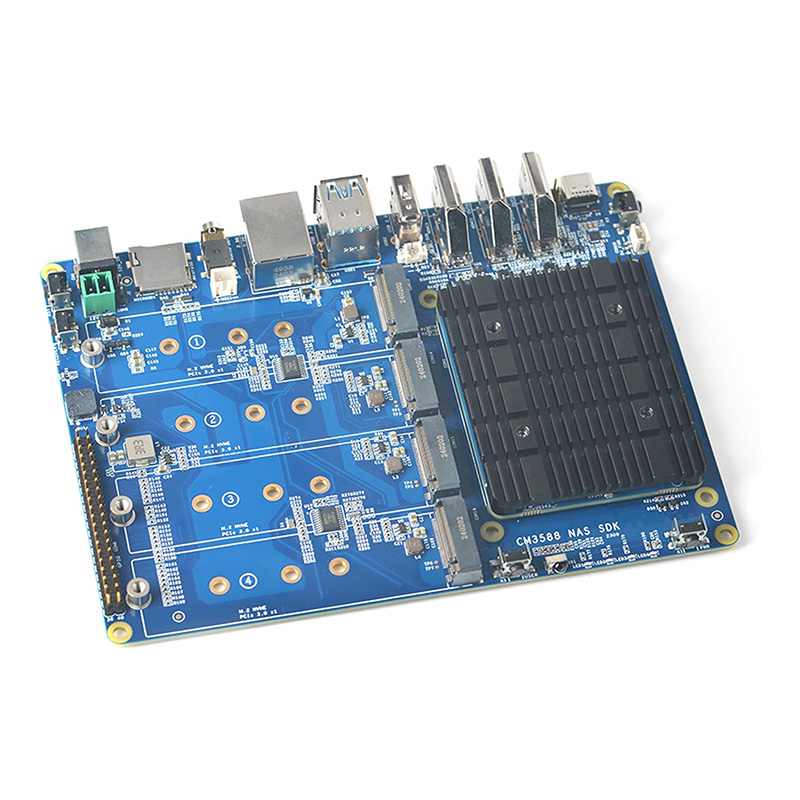

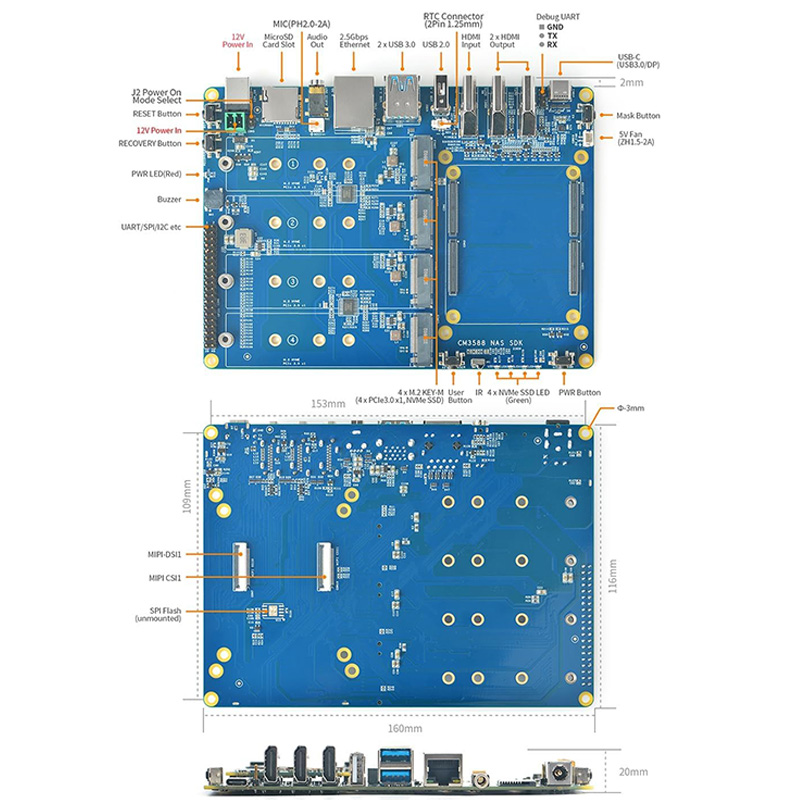

Abundant Interfaces on Carrier Board
- PCIe ×4 for NVMe SSD, max 1GB/s read/write speed
- Dual HDMI-Out + 1×HDMI-In, 2×USB3.0 +1×USB2.0
- RTL8125B-based PCIe 2.5G Gigabit Ethernet
Supported OS & Application
Pre-built system includes OpenMediaVault(NAS), Ubuntu, Debian, Android, Buildroot, OpenWrt. Widely applied on DIY NAS, AI deep learning, machine vision, face recognition, VR and prototype server development.
